询价船舶备件—Centa联轴器（CK-J20240715-09）询价

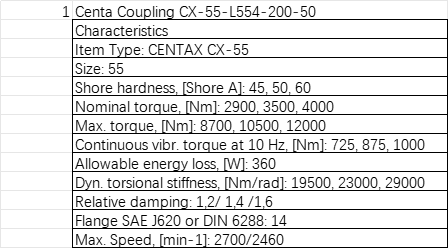

1 Centa Coupling CX-55-L554-200-50
Characteristics
Item Type: CENTAX CX-55
Size: 55
Shore hardness, [Shore A]: 45, 50, 60
Nominal torque, [Nm]: 2900, 3500, 4000
Max. torque, [Nm]: 8700, 10500, 12000
Continuous vibr. torque at 10 Hz, [Nm]: 725, 875, 1000
Allowable energy loss, [W]: 360
Dyn. torsional stiffness, [Nm/rad]: 19500, 23000, 29000
Relative damping: 1,2/ 1,4 /1,6
Flange SAE J620 or DIN 6288: 14
Max. Speed, [min-1]: 2700/2460
