询价船舶备件—液位报警器（CK-Y20240619-01）询价

Request:

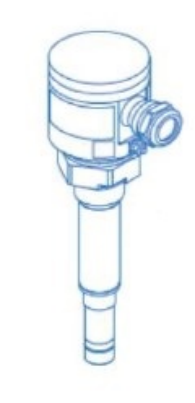

– Level alarm – 1 pc.;

Basic technical characteristics:

Housing material – stainless steel AISI 316L or analogue;

Power supply – 24 V D.C. current;

Protection class– IP68;

Alarm length– 115 mm;

Installation method – pipe cylindrical external thread G1 with sealing ring;

Output signal – dry contact (3-4): open («dry»)/closed («wet»); without power supply – closed;

Temperature measuring range – from minus 55 ℃ to plus 100 ℃;

Explosion protection – without explosion protection;

Cabel length– 10 m;

Additional certification – Russian Maritime Register of Shipping (RMRS) if available
