询价船舶备件—温度报警器/压力传感器（CK-Y20240529-06）询价

Request:

– Temperature alarm – 4 pcs.;

– Pressure transducer – 1 pc.

Basic technical requirements

• Temperature alarm

Housing material – stainless steel AISI 316L or analogue;

Power supply – 24 V at D.C. current;

Protection class – IP67;

Thermal converter probe length – 150mm;

Probe diameter – 8mm;

Measuring temperature range – from minus 50 ℃ to plus 100 ℃;

External thread connection – G1/2ʺ-А;

General industrial explosion protection version – without explosion protection;

Cable entry for the cable with external diameter – from 8mm to 12mm;

With thermowell;

Without remote thermal insulation insert;

Additional certification – Russian Maritime Register of Shipping (RMRS) as available.

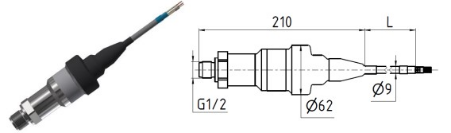

• Pressure transducer

Housing and membrane material – stainless steel AISI 316L or analogue;

Power supply – 24 V at D.C. current;

Protection class – IP68;

Transducer type – in excees;

Measuring range– 0-60 mm w.g.;

Connection type – external cylindrical pipe thread G1/2ʺ;

Membrane version– normal;

Cabel length (L) – 10m

Version – standard version (without explosion protection);

Operating temperature – from minus 60 ℃ to plus 85 ℃;

Additional certification – Russian Maritime Register of Shipping (RMRS) as available.
